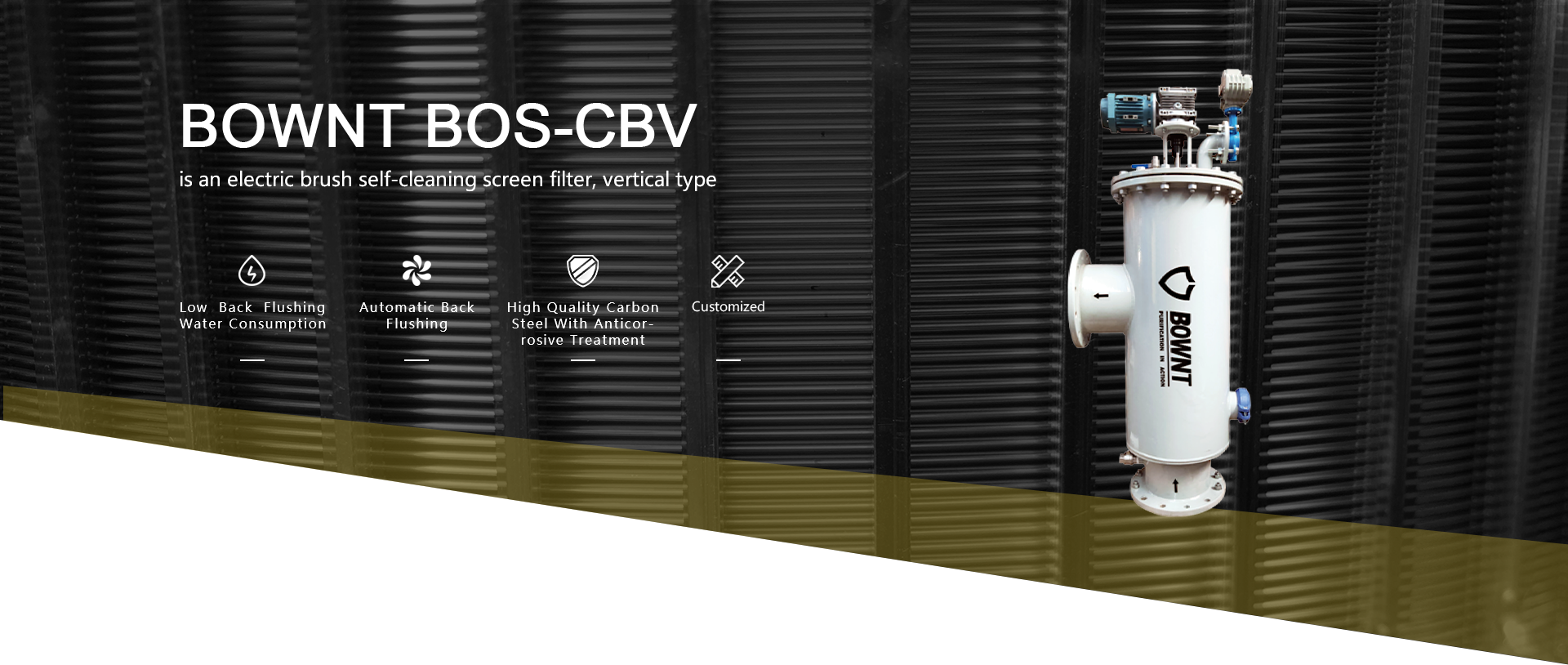

Product features:

● Electric drive, vertical installation, reliable and durable brush cleaning system.
● High efficiency, energy saving and low water consumption .
● Back washing cycle can be automatic activated by differential pressure and timing, without an interruption of filtration.
● Flange standard: ANSI B16.5/DIN2576/GB9119 .
● Filtration grade optional for 100、200、300、500、800、1500、2500、3500 micron and etc.

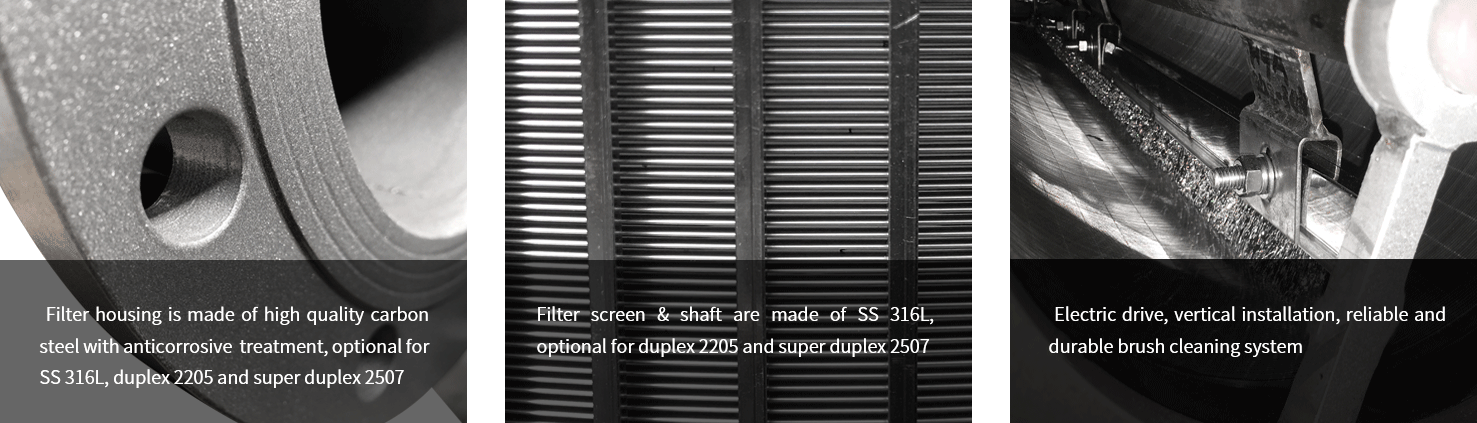

● Filter screen & shaft are made of SS 304 or SS 316L.
● Filter housing is made of high quality carbon steel with anticorrosive treatment, optional for SS 316L.
● Max. working pressure: 145psi(1.0MPa) as standard.
● All filters apply to hydraulic test before shipment to ensure a high quality.

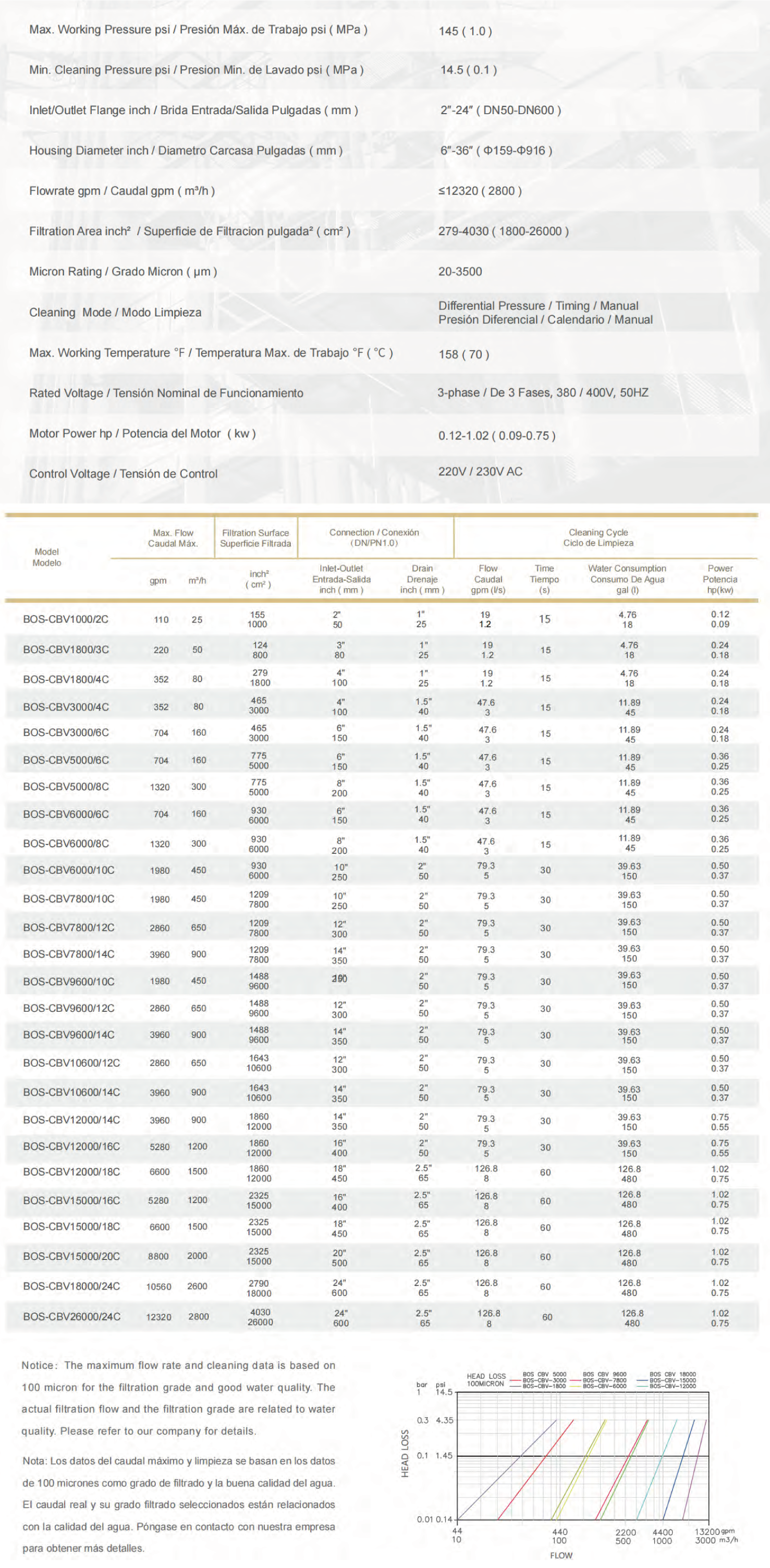

Technical parameter: Detailed parameters >

Max. working pressure psi ( MPa )145(1.0)
Min. back washing pressure psi ( MPa )29(0.2)
Inlet/Outlet flange inch(mm)2″-24”(DN50-DN600)
Housing diameter inch (mm )6″-36”(Φ159-Φ916)
Flowrate gpm ( m³/h )≤10560(2400)
Filtration surface inch² ( cm² )155-2790(1000-18000)
Filtration grade (um)100-3500
Back washing modeDifferential Pressure / Timing / Manualal
Max. working temperature ℉ ( ℃ )158(70)
Rated operating voltage3 PHASE,220/380V,50HZ
Motor power hp ( kw )0.12-1.02(0.09-0.75)
Control unit voltage220V AC

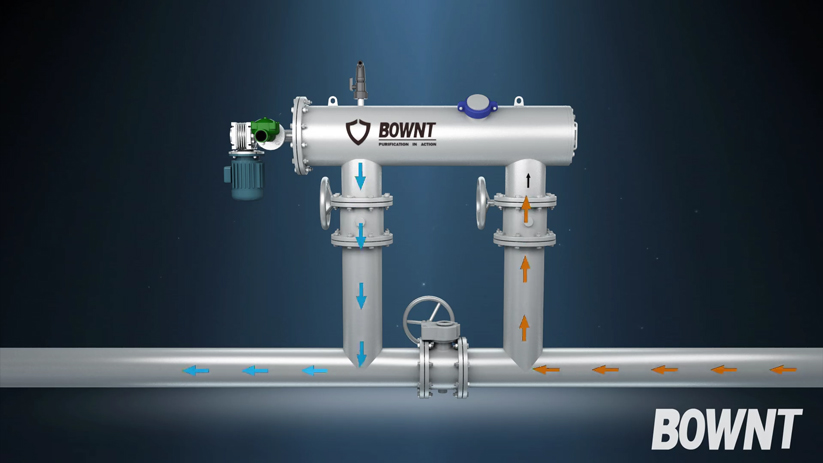

Working principle

BOWNT BOS is a self-cleaning filter with filter element, a screen, which can removes the particles with a size bigger than the filtration grade. An electromagnetic drainage valve equipped to the end cover of the filter. When water flows from the filter inlet through the filter screen to the outlet, impurity particles continuously accumulated on the inner surface of the filter screen, increasing pressure differential between inner and outer screen surface. When differential pressure reaches a predetermined value (0.05MPa), pressure switch transfer signal to control unit to open the drainage valve to let the sewage, out.
