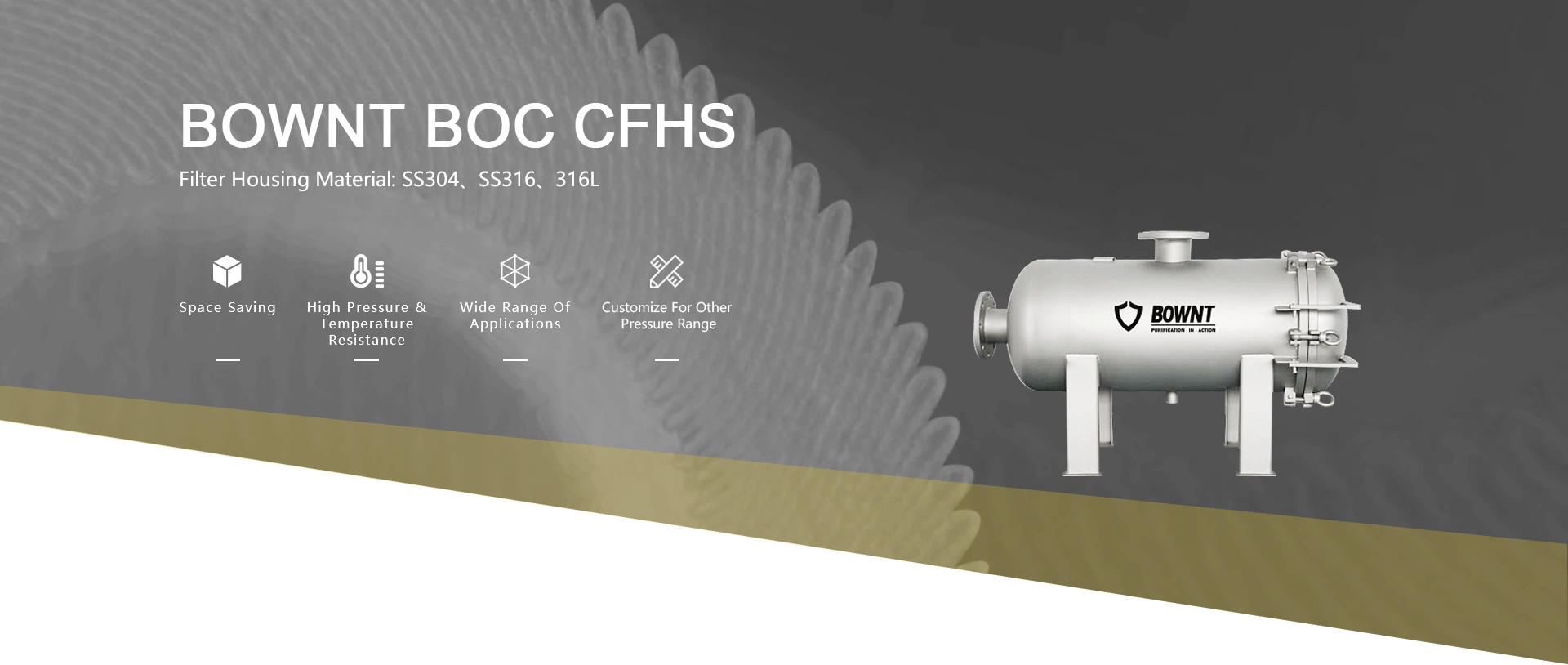

Product features:

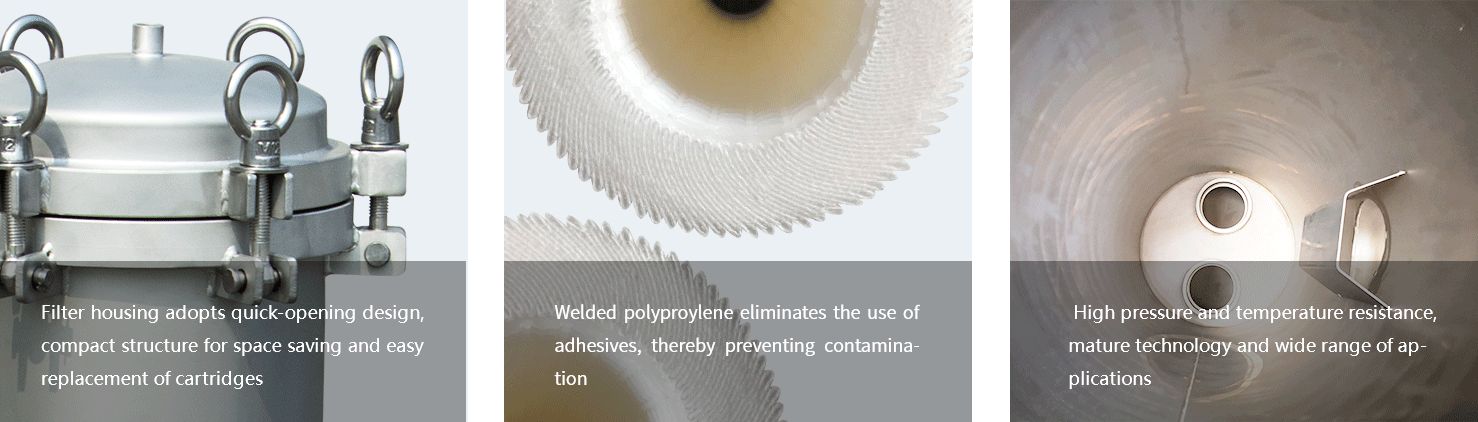

● Filter housing adopts quick-opening design, compact structure for space saving and easy replacement of cartridges.
● Filter housing with standard design pressure of 87psi(0.6MPa),which can be customized for other pressure range.
● Filter housing material: SS304、SS316、316L.
● High pressure and temperature resistance, mature technology and wide range of applications.
● CFHS serie filter is applicable for 60”high flow pleated cartridges.

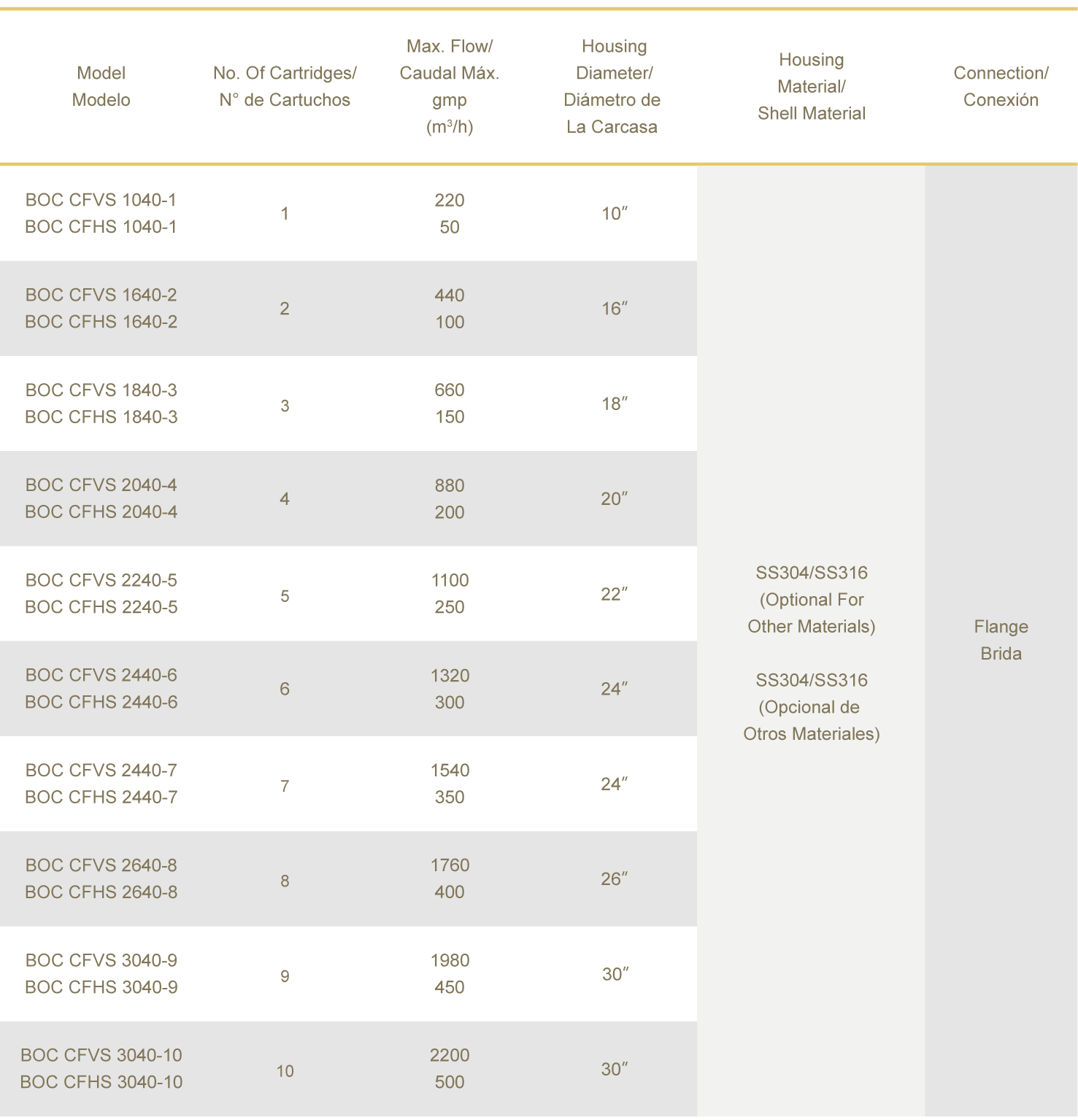

Technical parameter: Detailed parameters >

Cartridge quantity1-10
Max. flow gmp(m³/h)(308-3080)(70-700)
Housing diameter (inch)8”-30”
Inlet/outlet size (inch)4”-12”
Frame materialSS304/SS316 (optional for other materials)
ConnectionFlange
Dry weight (kg)100-950
Wet weight (kg)180-2200

Working principle

BOC high flow cartridges consist of a composite material, which can effectively remove the impurities and particles.The unique pleat-shaped design has a greater filtration surface ensuring stability of the flow-path. A plastic mesh is used in the supporting layer, which greatly reduces flow resistance, strengthens the filter material, increases cartridge filtering effect and service life. The cartridge is made of hot-melt welding polyproylene, a stable material used in a variety of critical applications.
