Product features:

● Multi-cartridges FRP filter is applicable for 40"/60" high flow pleated cartridges.

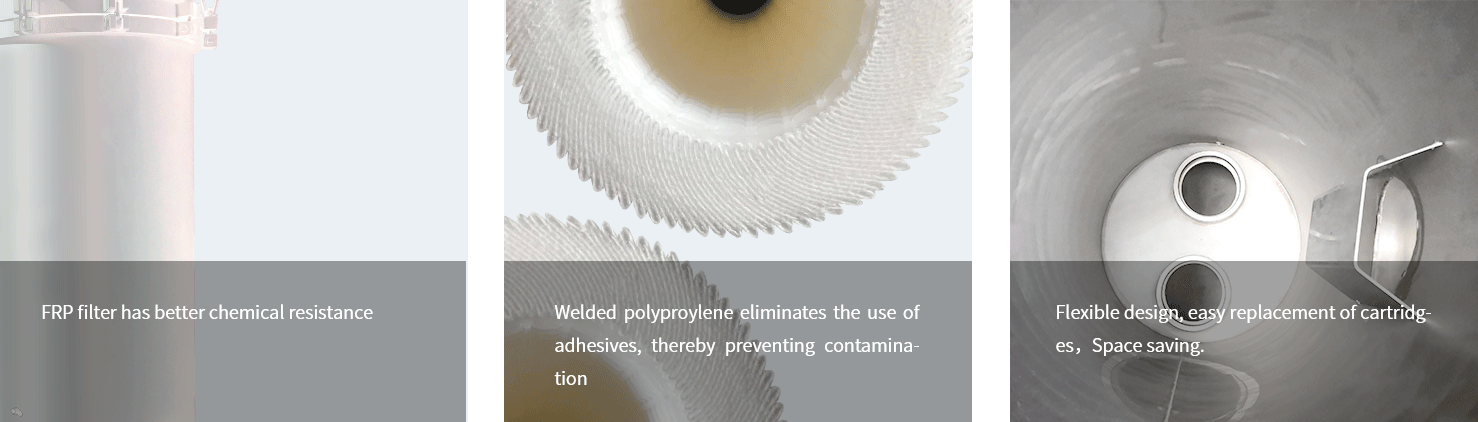

● FRP filter has better chemical resistance.
● Maximum working pressure up to 100psi.
● Flexible design, easy replacement of cartridges.
● Space saving.

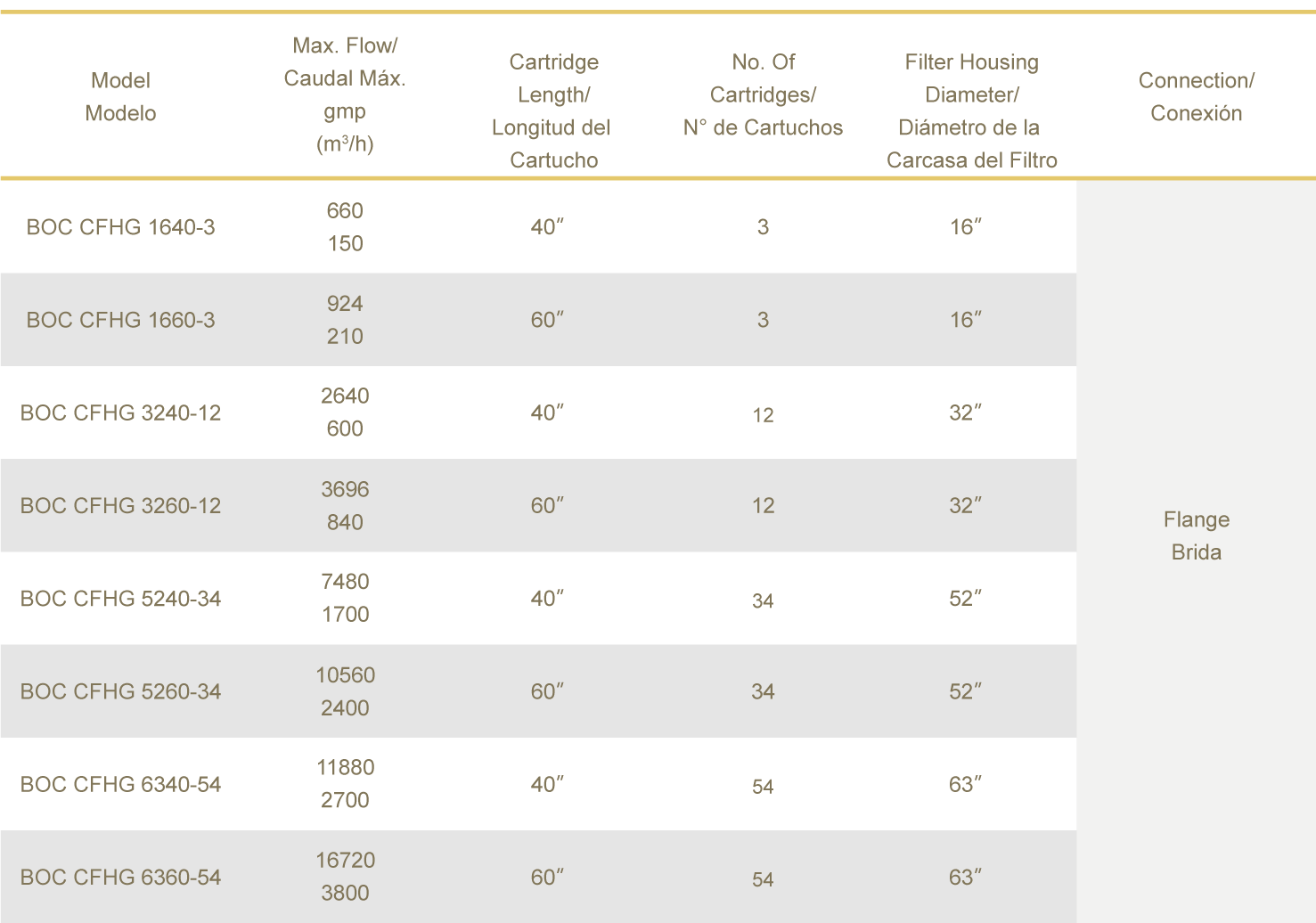

Technical parameter: Detailed parameters >

Max. flow gmp(m³/h)(660-16720)(150-3800)
Cartridge length (inch)40”-60”
Cartridge quantity3-54
Filter housing diameter (inch)16”-63”
ConnectionSide connection
Micron ratings (μm)1、3、5、10、20、40、70

Working principle

BOC high flow cartridges consist of a composite material, which can effectively remove the impurities and particles.The unique pleat-shaped design has a greater filtration surface ensuring stability of the flow-path. A plastic mesh is used in the supporting layer, which greatly reduces flow resistance, strengthens the filter material, increases cartridge filtering effect and service life. The cartridge is made of hot-melt welding polyproylene, a stable material used in a variety of critical applications.
