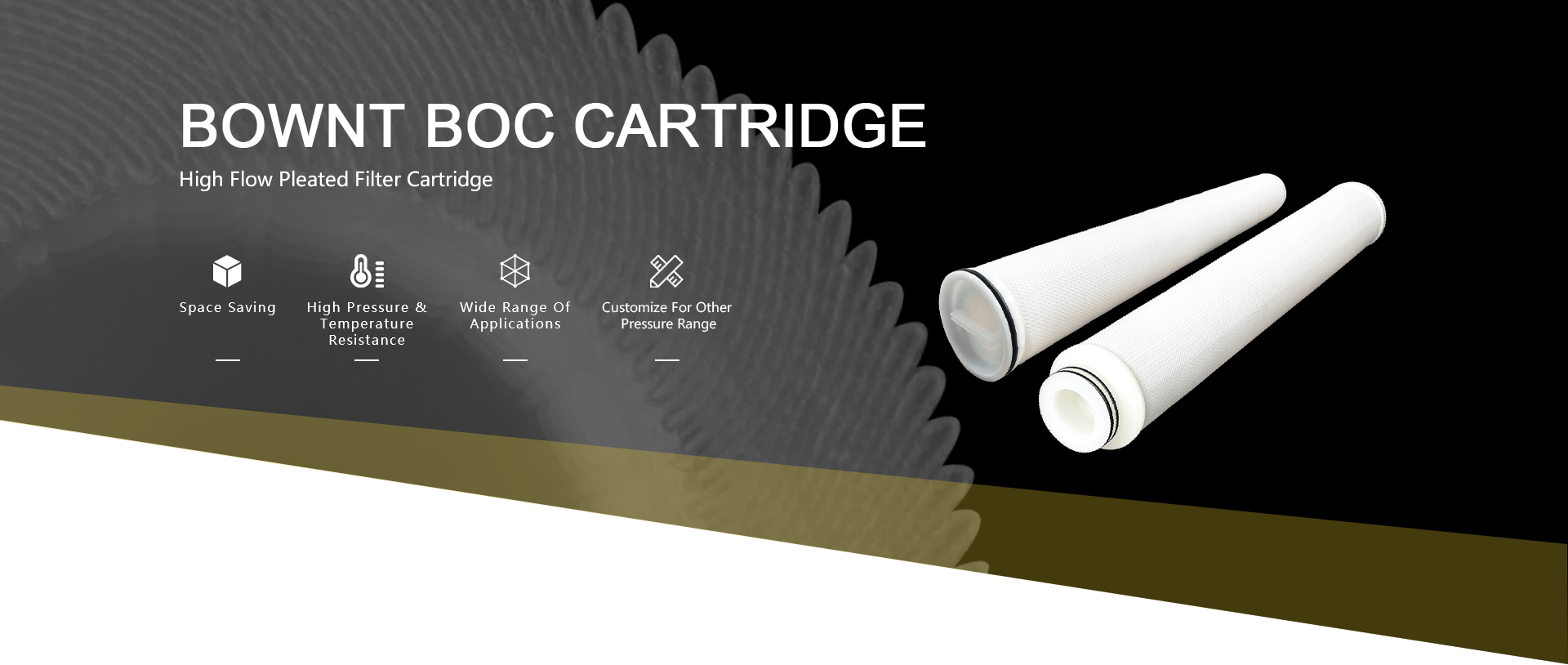

Product features:

● Diameter 6" (152mm), opening single-side, special design of handle ring for easy assembly, better sealing.
● Wide range of connections, suitable for high temperature and high pressure applications, including condensate filtration.
● Core and the outer structure support are made of polyproylene, which helps maintain structural integrity, even in the most challenging applications.
● Welded polyproylene eliminates the use of adhesives, thereby preventing contamination.
● Pleated design increases filtration surface and life of the cartridge.
● Industry leading design with carefully selected, sturdy material offers highest hydraulic capacity and DP limits.

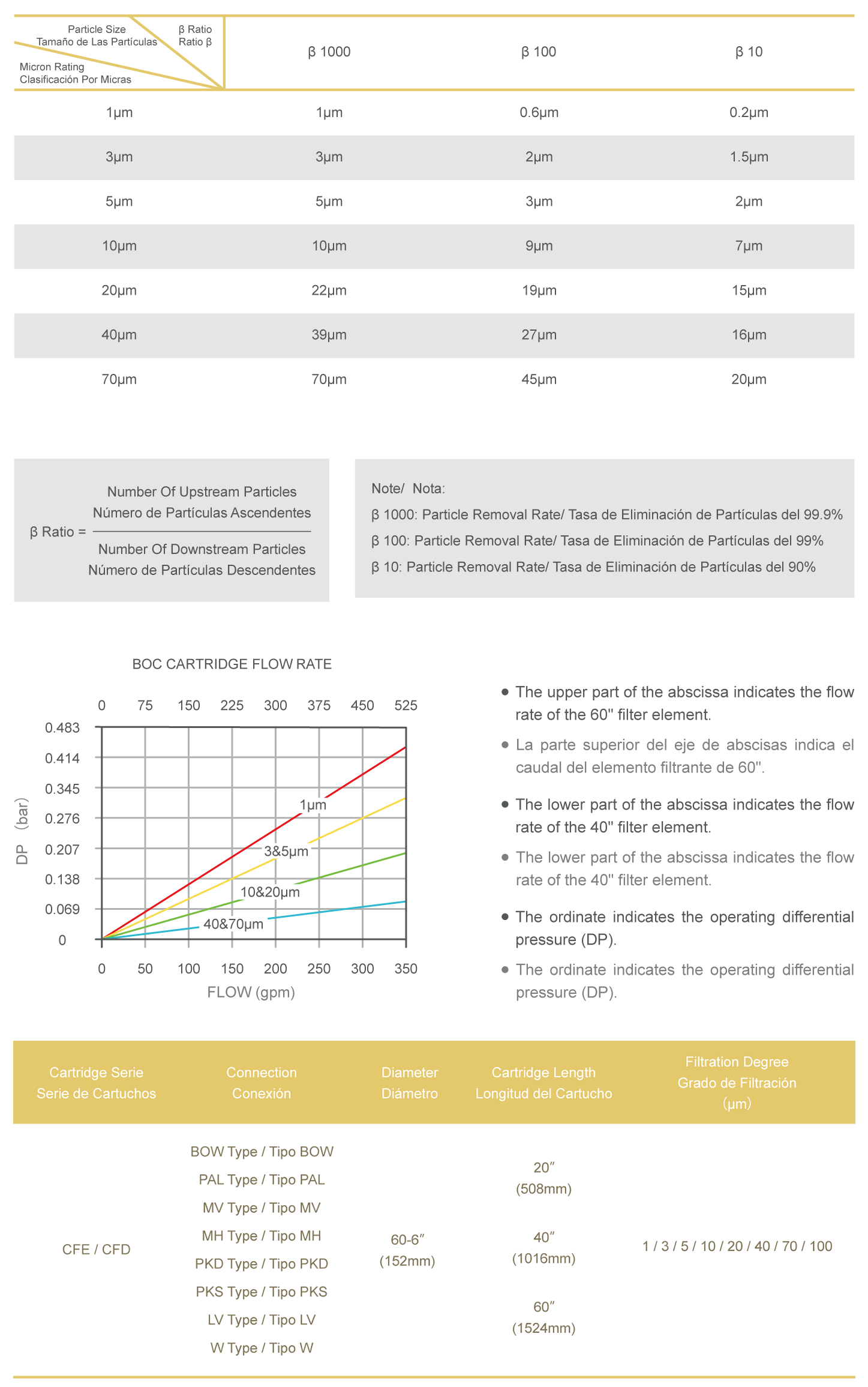

Technical parameter: Detailed parameters >

ConnectionBOW type、PAL type、MV type、MH type、PKD type、PKS type、LV type、W type
Diameter (inch)60-6”
Cartridge length (inch)20”-60”
Micron ratings(μm)1、3、5、10、20、40、70
Max. differential pressure psi(MPa)35.25(0.25)
Max. Working temperature ℉(℃)176(80)
Filtration surface inch20”-60”
Max. flow inch20”-60”
Cartridge filter layerPP
Cartridge inner/outer supportPP
Cartridge end capPP/PP+FRP
Cartridge O-ring materialEPDM, NBR, FPM, SIL

Working principle

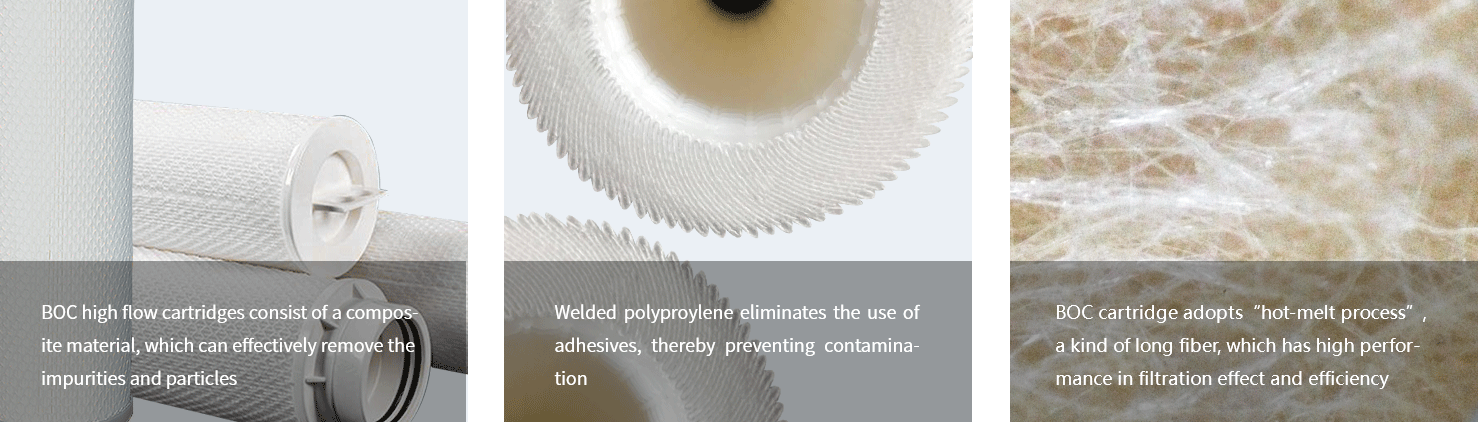

BOC high flow cartridges consist of a composite material, which can effectively remove the impurities and particles.The unique pleat-shaped design has a greater filtration surface ensuring stability of the flow-path. A plastic mesh is used in the supporting layer, which greatly reduces flow resistance, strengthens the filter material, increases cartridge filtering effect and service life. The cartridge is made of hot-melt welding polyproylene, a stable material used in a variety of critical applications.
