Product features:

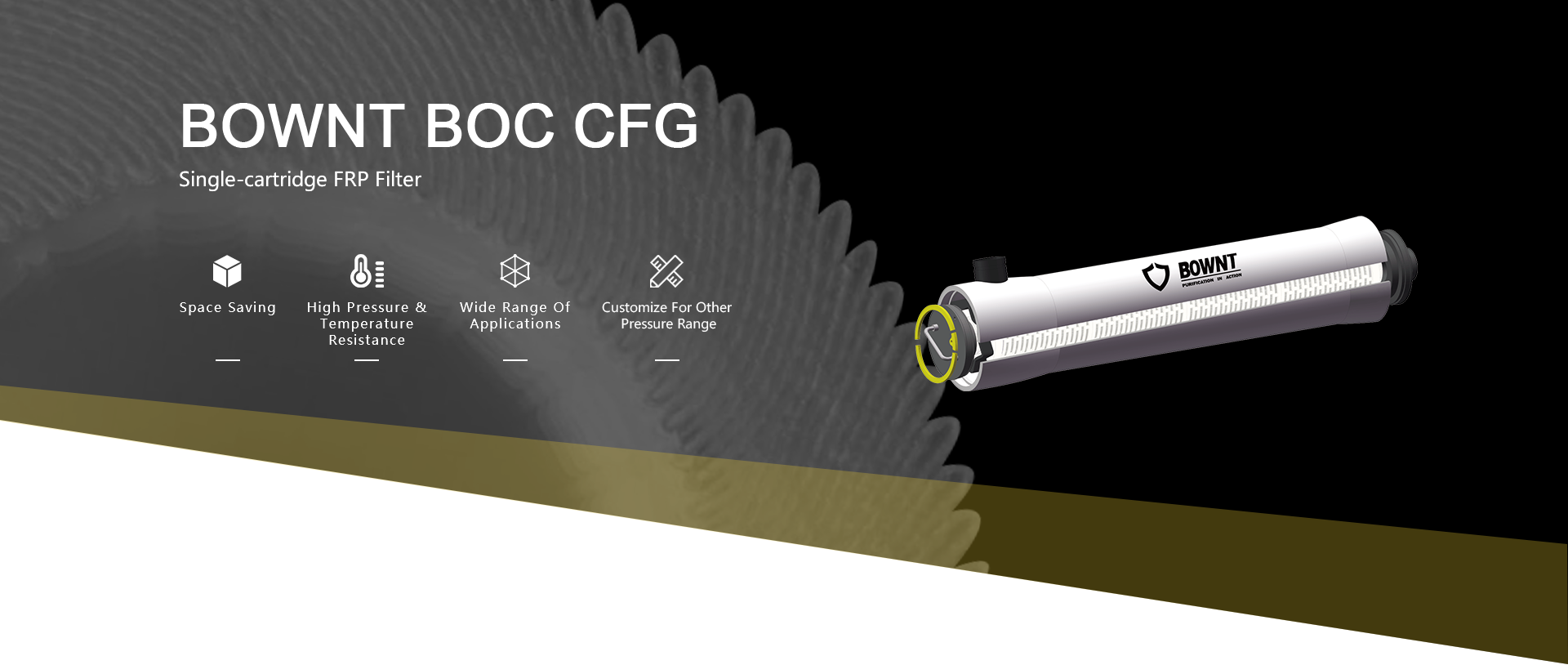

● Single-cartridge FRP filter is applicable for 20"/40"/60" high flow pleated cartridges.

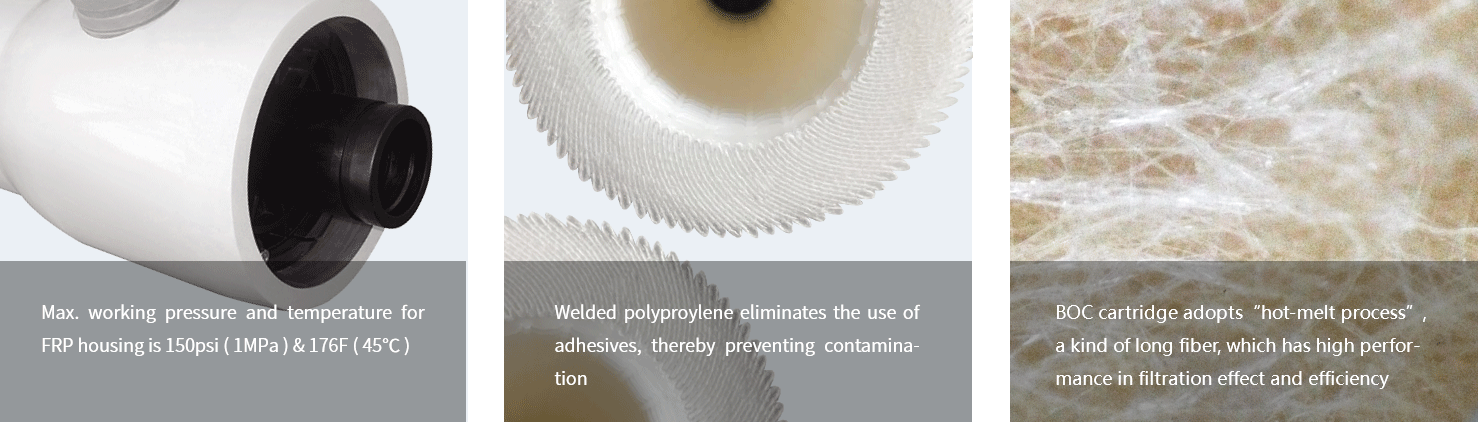

● FRP housing has better chemical resistance.
● Space saving of combined installation, can be joint-designed and install with RO membrance unit.
● Quick-opening design, easy replacement of cartridges.

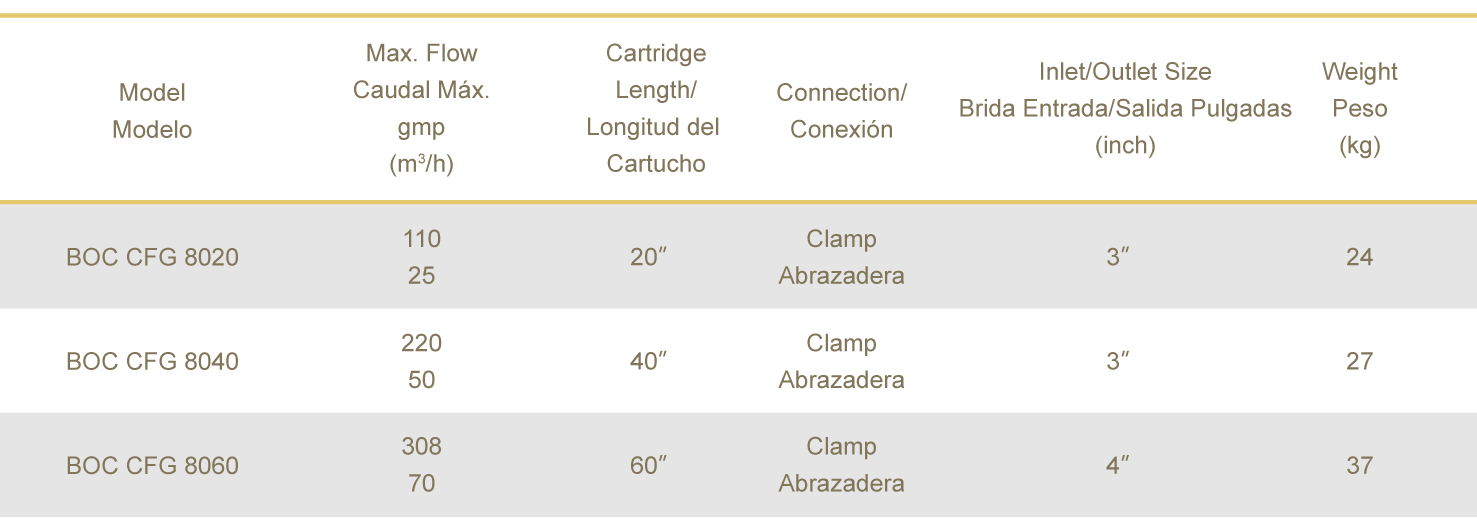

Technical parameter: Detailed parameters >

Max. flow gmp(m³/h)(110-308)(25-70)
Cartridge (inch)20”-60”
ConnectionSide connection
Inlet/outlet size (inch)3”
Weight (kg)24
Micron ratings (μm)1、3、5、10、20、40、70

Working principle

BOC high flow cartridges consist of a composite material, which can effectively remove the impurities and particles.The unique pleat-shaped design has a greater filtration surface ensuring stability of the flow-path. A plastic mesh is used in the supporting layer, which greatly reduces flow resistance, strengthens the filter material, increases cartridge filtering effect and service life. The cartridge is made of hot-melt welding polyproylene, a stable material used in a variety of critical applications.
