Product features:

● Excellent chemical compatibility, applicable for filtration of extreme PH values both acid and alkali, and for organic solvents.
● Folding deep filtration, large filtration area.
● Low differential pressure, good tolerance and long service life.
● Various filtration grades.
● Progressive pore size provides high pollution tolerance.

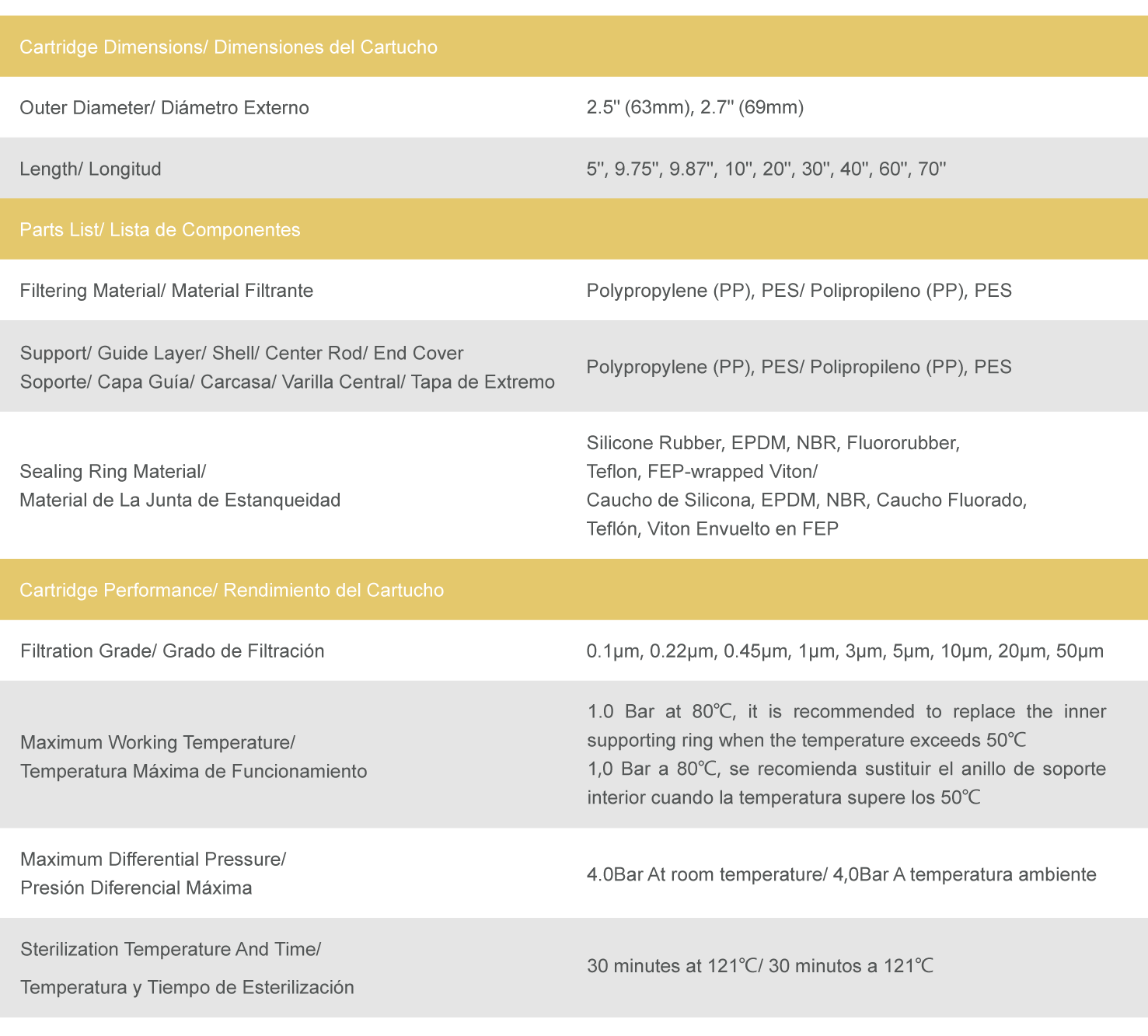

Technical parameter: Detailed parameters >

Outer diameter2.6''(66mm),2.7''(69mm)
Length5'',9.75'',9.87'',10'',20'',30'',40''
Filtering materialPolypropylene(PP)
Support / guide layerPolypropylene(PP)
Shell / center rod / end coverPolypropylene(PP)
Sealing Ring MaterialViton/ Silicone Rubber, EPDM, NBR, Fluororubber, Teflon, FEP-wrapped Viton
Filtration grade0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,20μm,50μm
Maximum working temperatureLt is recommended to replace the inner supporting ring when the temperature exceeds
Maximum differential pressure4.0Bar At room temperature
Maximum reverse differential pressure2.0Bar At room temperature
Sterilization temperature and time30 minutes each time at 121℃
