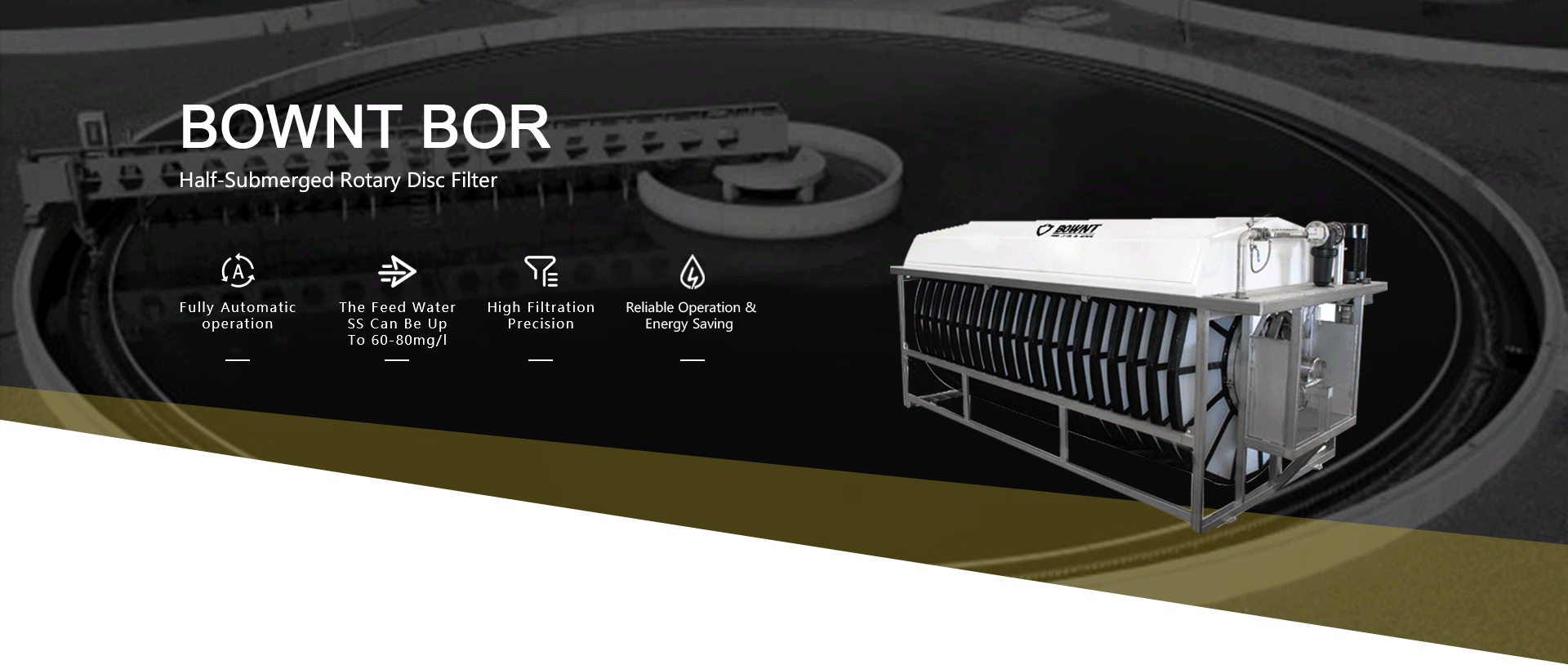

● Good performance and stable permeate quality, the feed water SS can be up to 60-80mg/l
● Space saving and reliable operation, low installed power and energy saving
● System head loss is no more than 0.3m
● Fully automatic operation
● Modular design for simply installation and maintenance, replacement of disc cloth is more convenient
● High filtration precision, disc cloth micron rating from 5μm to 20μm according to requirements

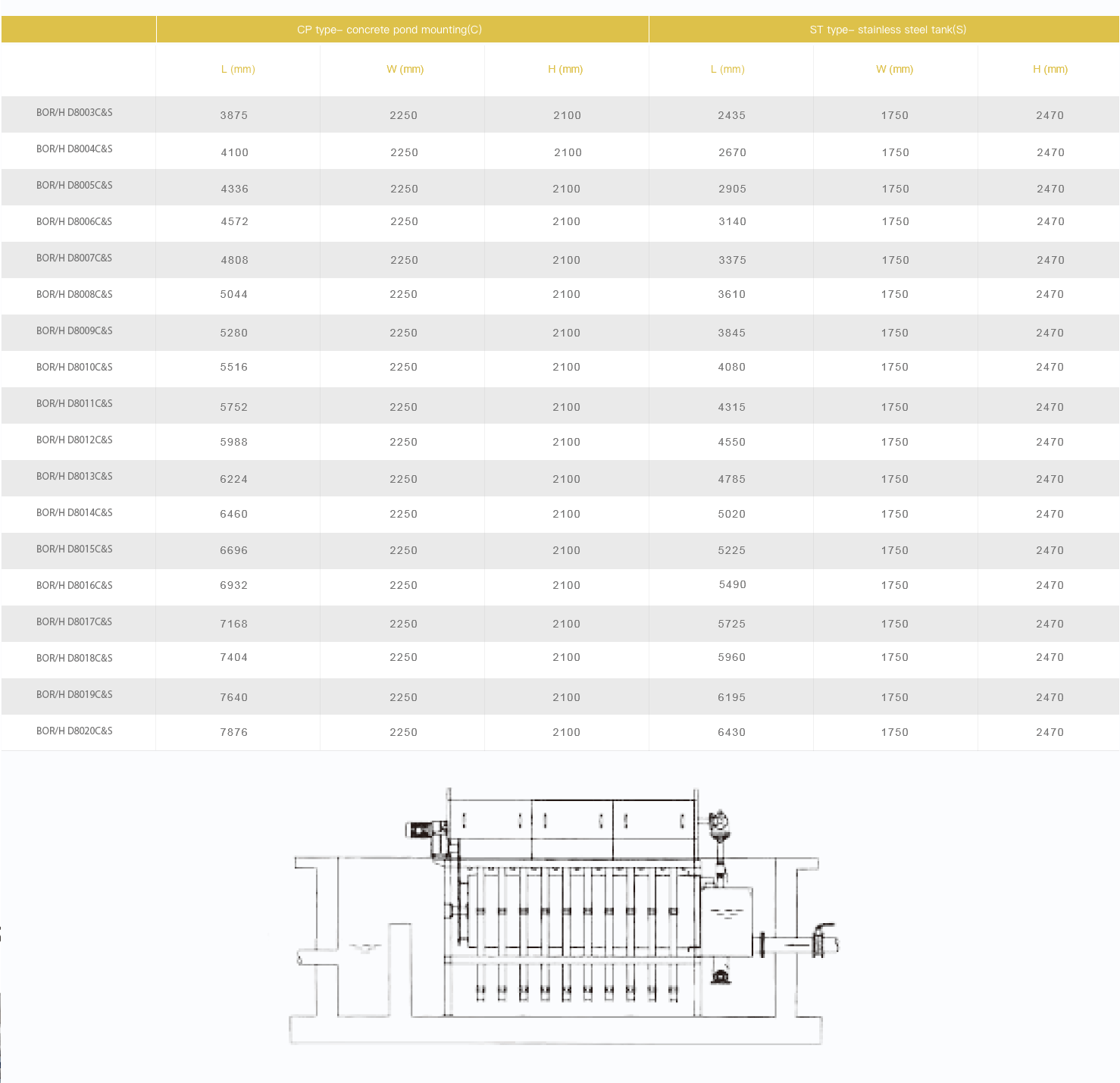

Capacity | 28~35m³/h |
Disc Diameter | Φ2000mm |
Number of Discs | 3~23 |
Filtration Area | 4.5㎡ |
Filtration Velocity | 8~15m/h/㎡ |
Feed Water Quality | SS≤30mg/L |
Permeate Quality | SS≤10mg/L |
Backwashing Consumption | 30L/Disc/Cycle |
Backwashing Pressure | 6~8 bar |
Head Loss | 50~200mm |
Backwashing Cycle | 1~3 min |
Operating Pressure | Gravity filtration |
The operating state of the rotary disc filter is consist of filtering and
backflushing(sludge discharge) processes, which are relatively independent but running simultaneously at different parts of the filter.
a.Filtering:Raw water fills into the central cylinder under the gravity, and distributed to the inner cavity of filter discs through the upper cylinder holes. Clean water pass through the disc cloth and flows to the filter outlet, while the particles or solids are intercepted inside the filter discs. Filter discs are stood still during filtering process.
b.Backflushing:With the accumulation of particles and solids inside the filter discs, tank water level gradually raised. When the water level reachs a
predetermined line of backflushing, PLC control system starts backflushing cycle. Filter central cylinder and discs driven by the motor rotated at a speed of 1~3 rpm, while the backwashing pump started, pumping clean water to the top umbrella
nozzles, flushing the disc cloth from outside to inside. Since the particles and solids are removed from the disc cloth and discharged from the drain manifold. Nozzles move up and down during backflushing cycle, great saving of water consumption and cleaning without dead corners. Filter backflushing times and duration can be adjustable according to the plant situation, and it continuous
filtering without an interruption during backflushing.
