Product features:

● Electric-driven, advanced and reliable suction scanning cleaning mechanism, ingeniously structured for ease of maintenance.
● Cleaning cycle can be automatic activated by the differential pressure and timing, without an interruption of filtration.
● High efficiency, low energy and water consumption.
● Flange standard is optional for ANSI B16.5/ DIN2576/ GB9119.

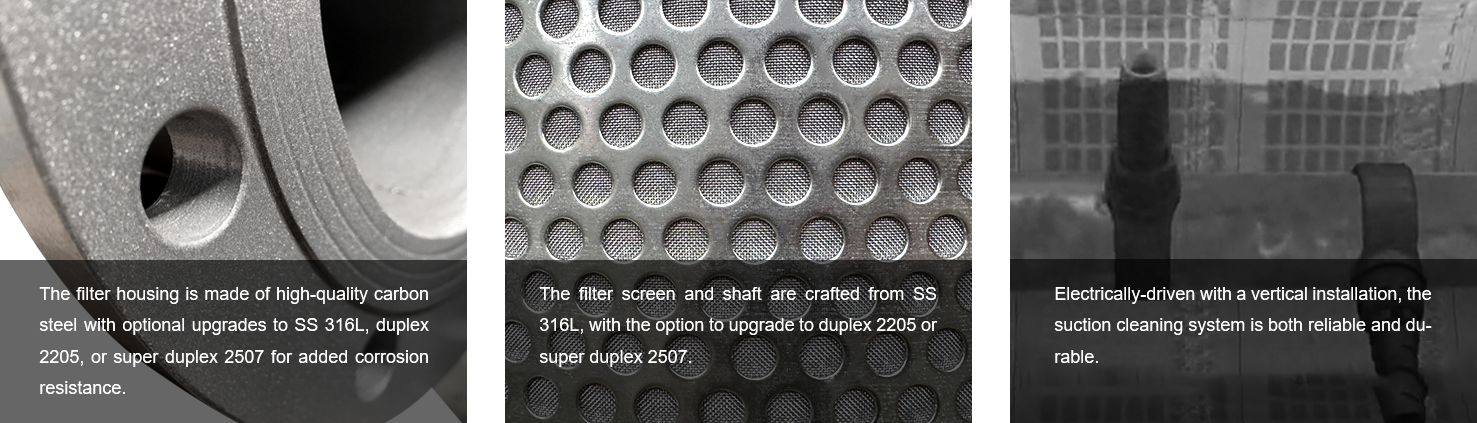

● Stainless steel woven mesh that offers a variety of filtration precisions, including 20,50,80,100, 130,200,300,500,800,1000micron and etc.
● Pressure rating is optional for 145psi(1.0MPa),232psi(1.6MPa),362.5psi(2.5MPa)
● All filters apply to hydraulic test before shipment to ensure a safe operation.
● Customizable for high anticorrosive and explosionproof components.

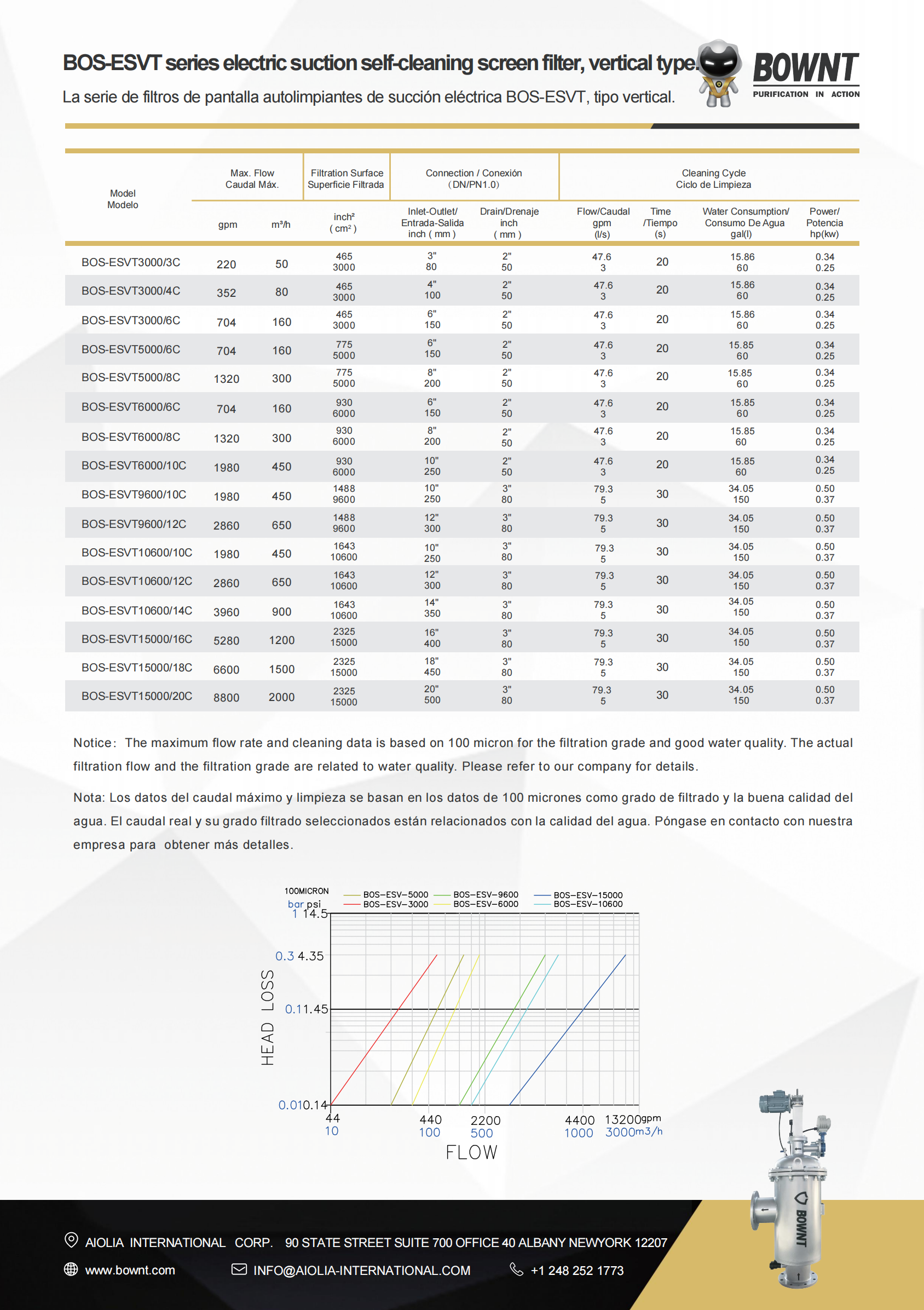

Technical parameter: Detailed parameters >

Max. Working Pressure psi( MPa )145 ( 1.0 ) / 232 ( 1.6 ) / 362.5 ( 2.5 )
Min. Cleaning Pressure psi( MPa )21.8 ( 0.15 )
Inlet/Outlet Flange inch ( mm)3′′-20′′ ( DN80-DN500 )
Flowrate gpm( m³/h )≤8800 ( 2000 )
Filtration Area inch² ( cm² )465-2325 ( 3000-15000 )
Micron Rating ( μm )20-1000
Cleaning ModeDifferential Pressure / Timing / Manual
Max. Working Temperature ℉( °C )158 ( 70 )
Rated Voltage3-phase / De 3 Fases, 380 / 400V, 50HZ
Motor Power hp0.34-0.5( 0.25-0.37)
