Product features:

● High removal rate: unique water inflow mode, which integrates functions of filtration, washing (optional), pressing, conveying,dehydration and slag discharge, can effectively remove fiber substances such as hair.
● Greatly improve the stability and service life of the membrane bioreactor.
● There is no transmission part under the water, free of maintenance and convenient for repair.
● Space saving of vertical mounting.
● The equipment is integral, with high manufacturing precision and convenient installation.
● Slags are insolated from the clean water to avoid secondary pollution.
● High capacity, stable operation, light vibration and low noise.

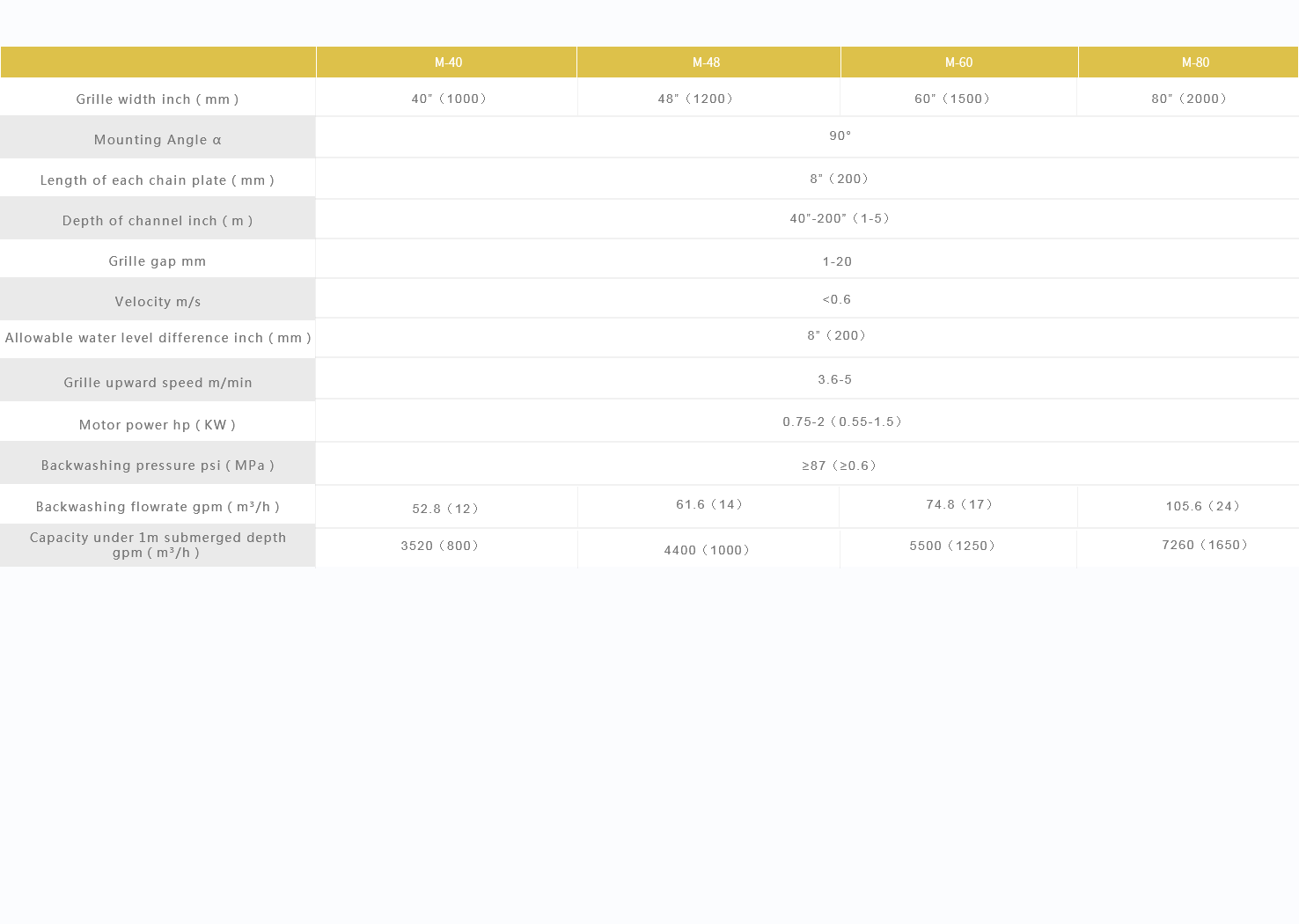

Technical parameter: Detailed parameters >

Mounting Angle α90°
Length of each chain plate inch(mm)8”(200)
Depth of channel inch(m)40”-200”(1-5)
Grille gap mm1-20
Velocity m/s<0.6
Allowable water level difference inch(mm)8”(200)
Grille upward speed m/min3.6-5
Motor power hp(KW)0.75-2(0.55-1.5)
Backwashing pressure psi(MPa)≥87(≥0.6)
