Product features:

● String wound filter cartridge for water treatment is a porous skeleton precision coiled by high performance wound fiber.
● Its special honeycomb structure make it remove the suspended particles , particulates, rust and so on.
● High filtration bearing pressure.
● Good compatibility.
● Various cartridge materials to meet the filtration requirements of various liquid.
● The structure of filtering aperture is dense and sparse, with good deep filtration effect.
● It can effectively remove suspended solids and particles in the liquid, and has small pressure drop and good pollution tolerance.

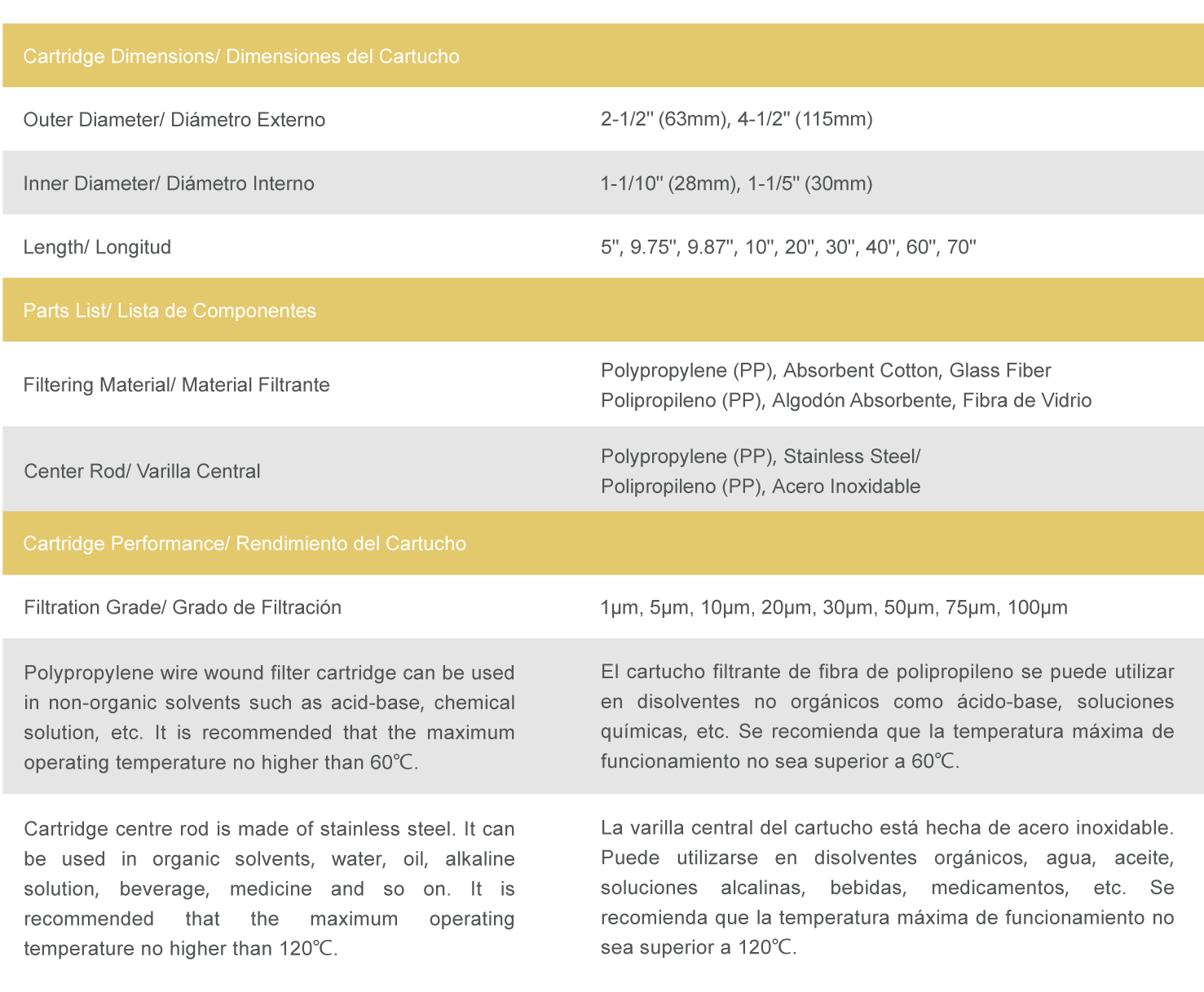

Technical parameter: Detailed parameters >

Outer diameter2-1/2''(63mm),4-1/2''(115mm)
Inner diameter1-1/10'' (28mm),1-1/5''(30mm)
Length5'',9.75'',9.87'',10'',20'',30'',40''
Filtering materialPolypropylene (PP), absorbent cotton, glass fiber
Center rodPolypropylene (PP), stainless steel
Filtration grade1μm,5μm,10μm,20μm,30μm,50μm,75μm,100μm
The maximum operating temperaturePolypropylene wire wound filter cartridge can be used in non-organic solvents such as acid-base, chemical solution, etc. It is recommended that the maximum operating temperature no higher than 60℃
The maximum operating temperatureCartridge centre rod is made of stainless steel. It can be used in organic solvents, water, oil, alkaline solution, beverage, medicine and so on. It is recommended that the maximum operating temperature no higher than 120℃
